COLLECTIVE CORE - PRESENTATION CENTER

As part of the collective core, my task was to design the sales center within the new residential building plan. This was done collaboratively with the team who designed the building, and a fellow student who designed the adjoining presentation suite.

Sales Center + Presentation Suite

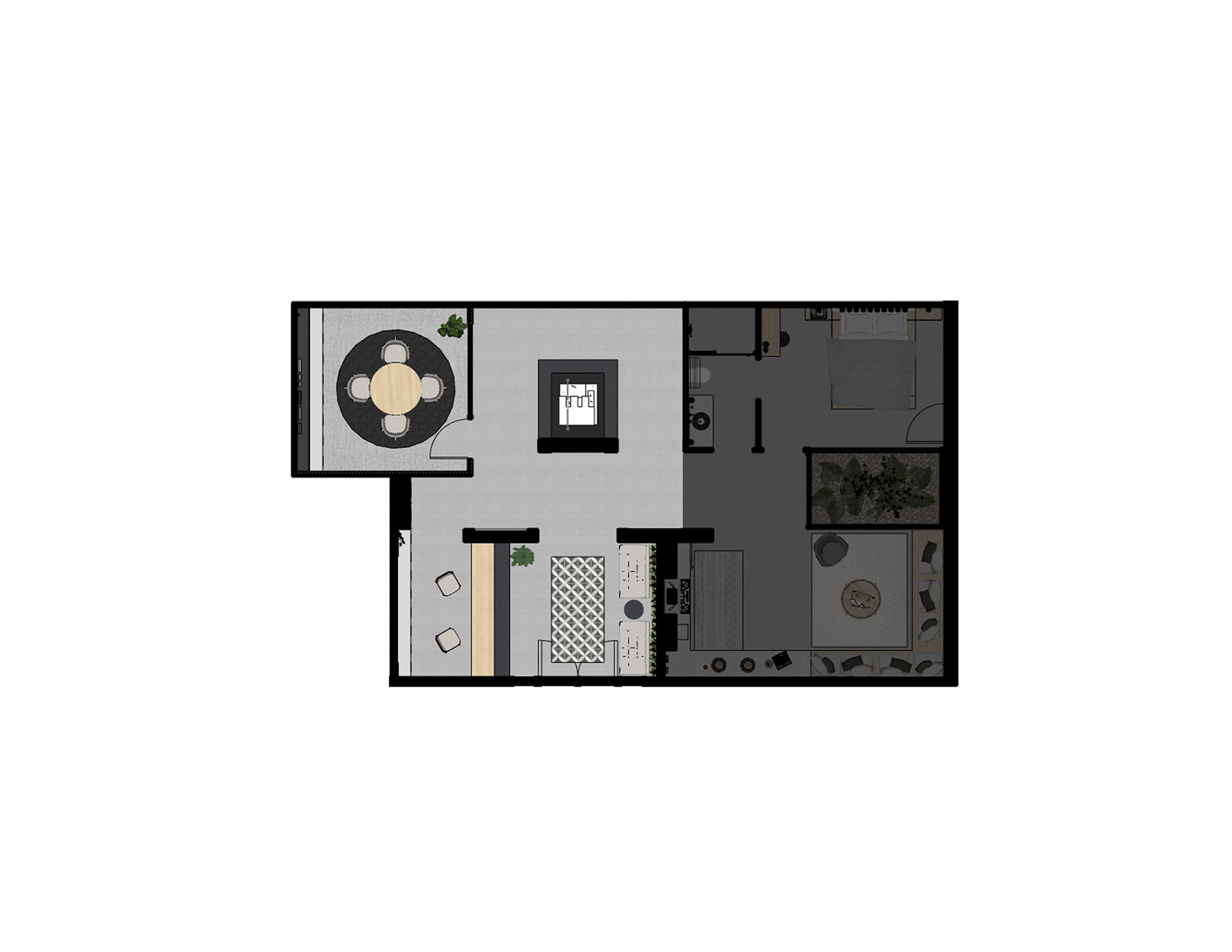

Located along Broadway, in the buildings ground floor is the sales center (highlighted) and presentation suite.

Sections

Below are sections done via SketchUp.

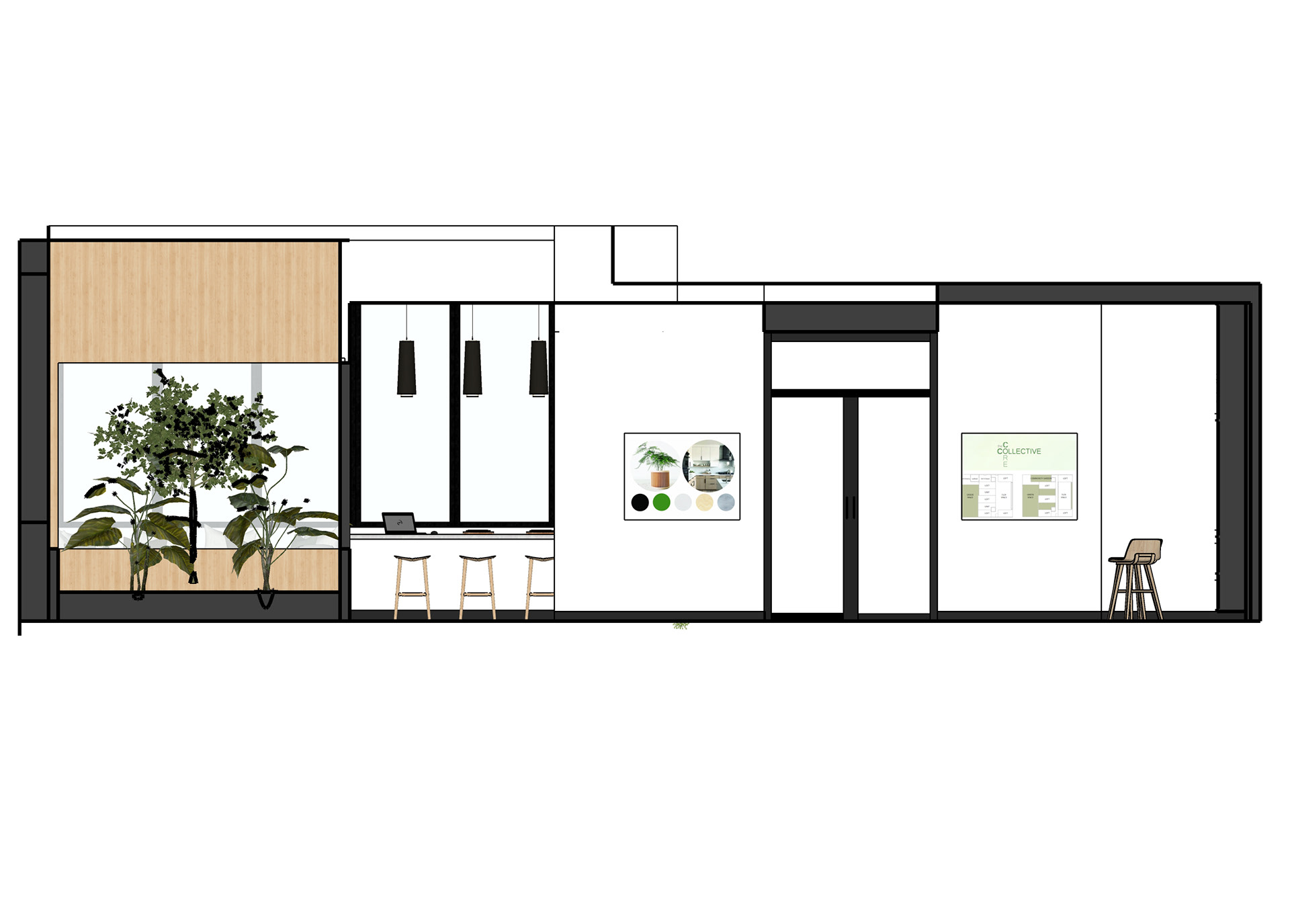

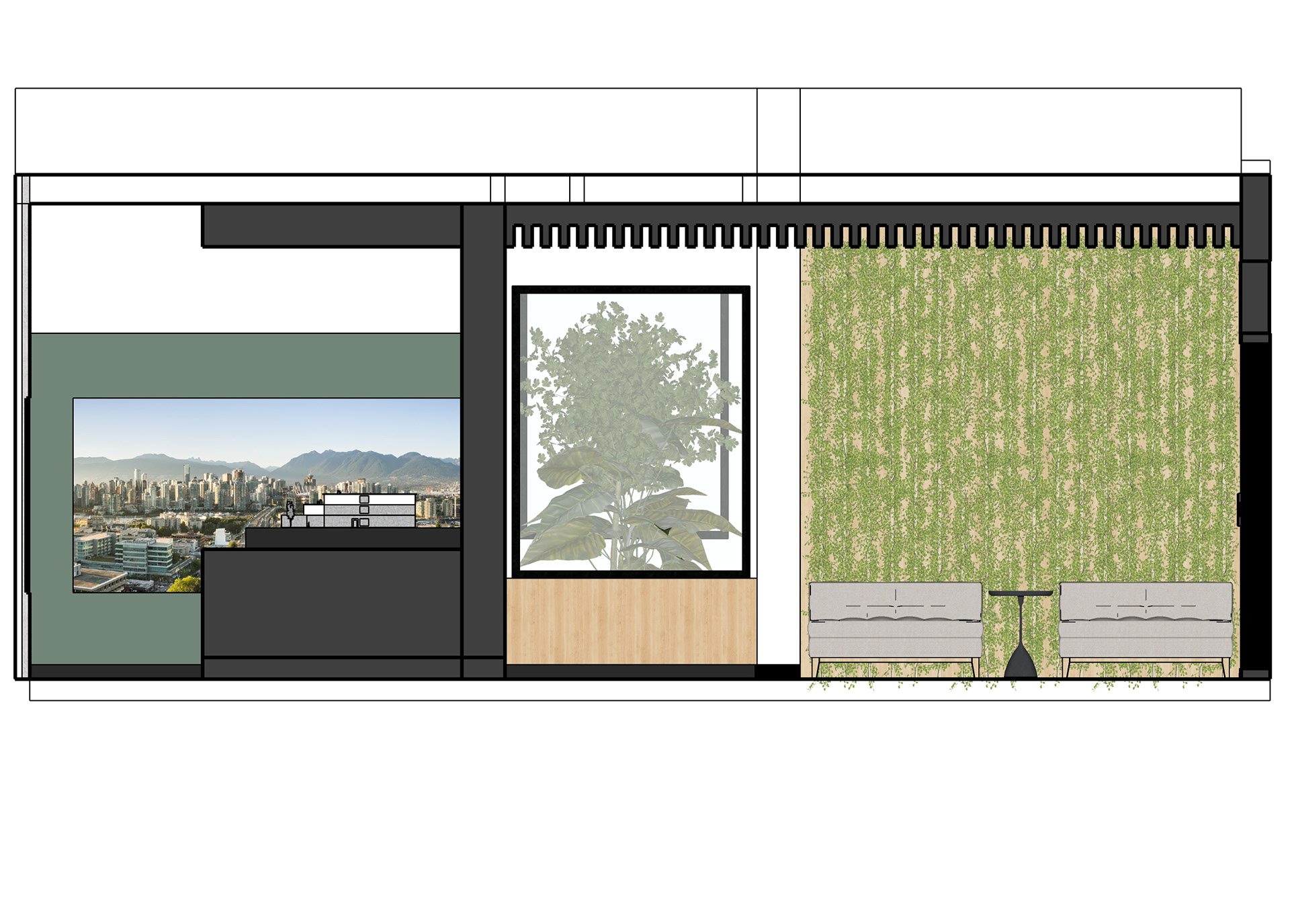

The first set are of the East and West view of the Sales Center.

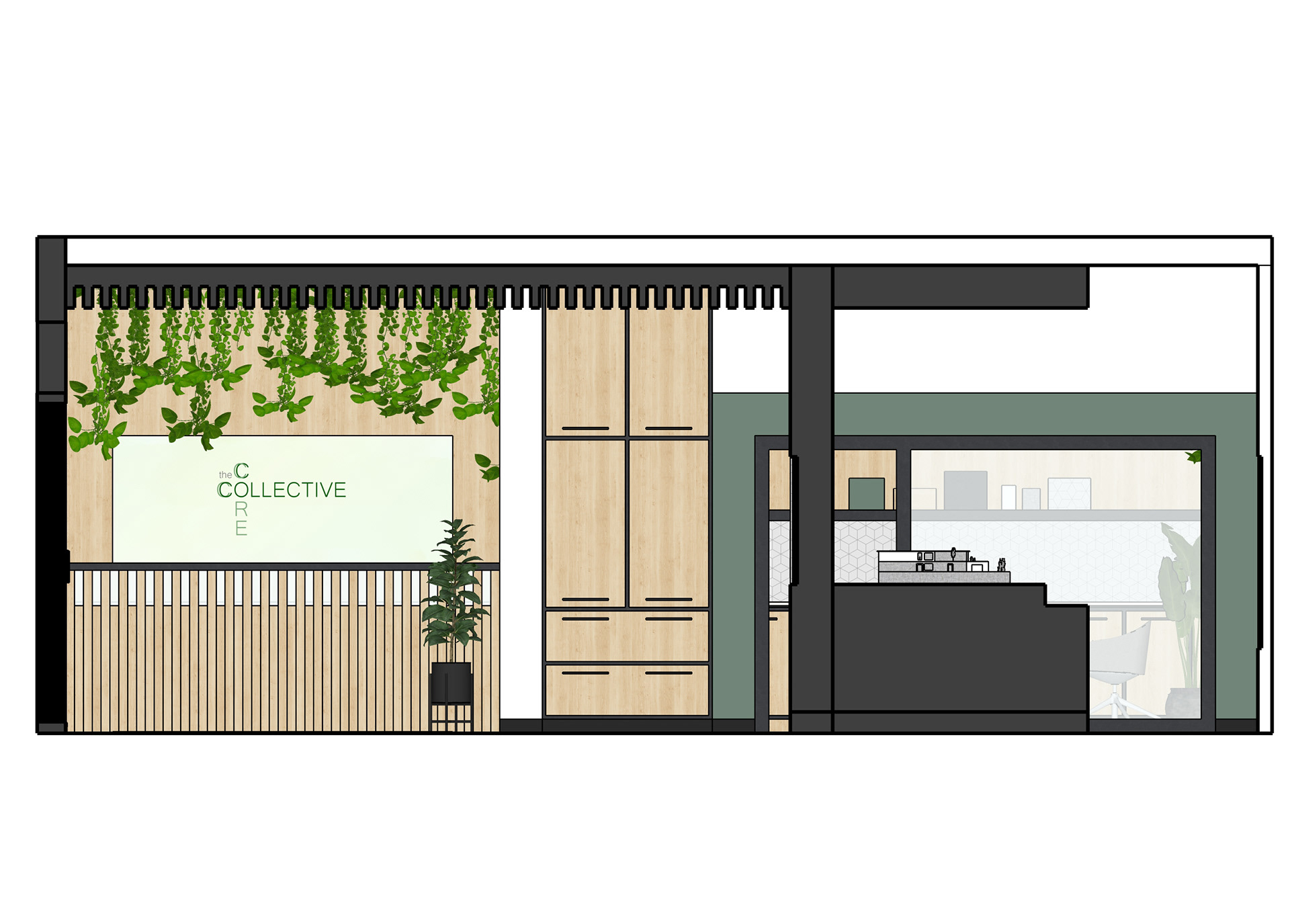

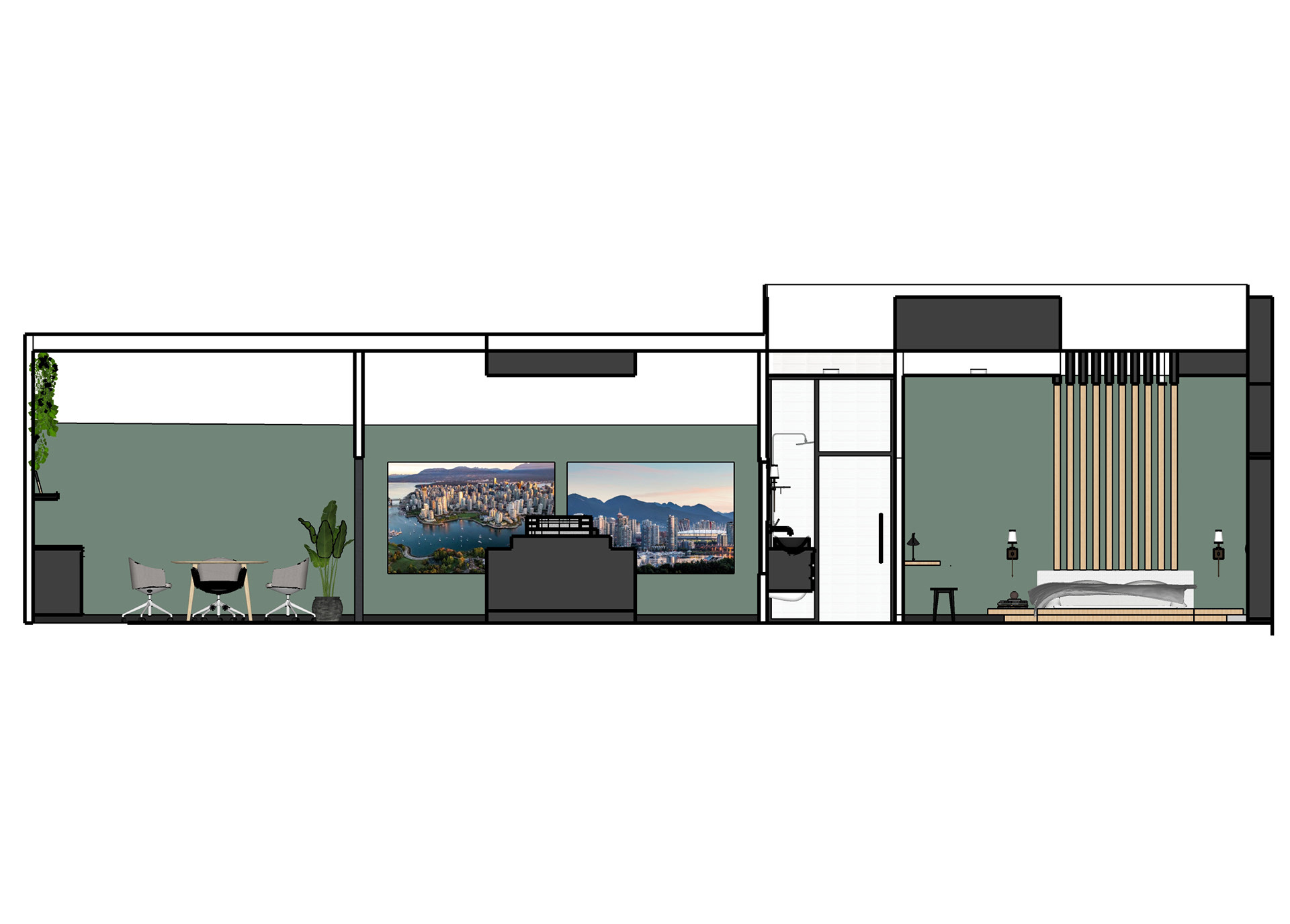

The secondary set are cross sections of the adjoining Sales Center and Presentation Suite.
